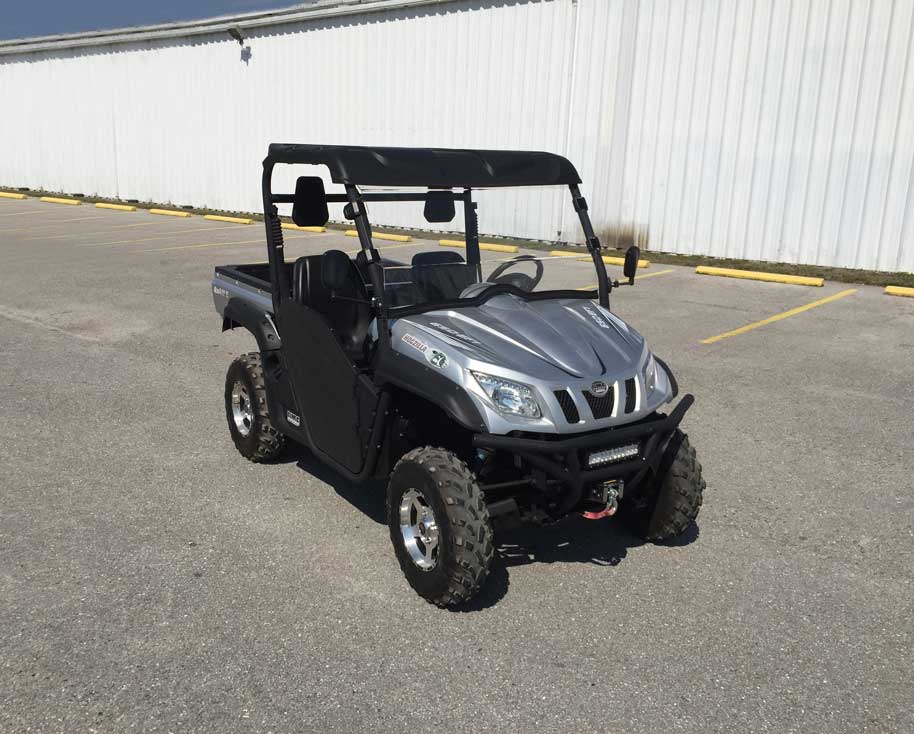

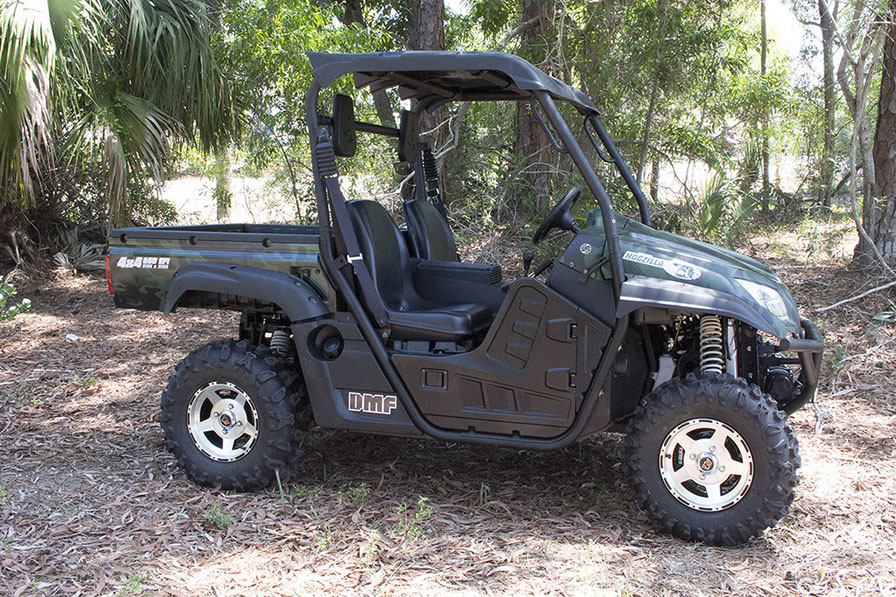

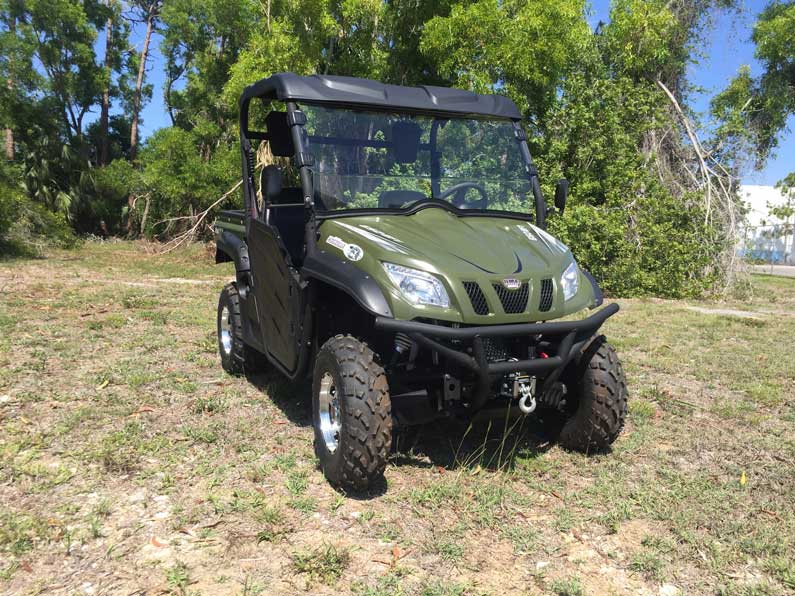

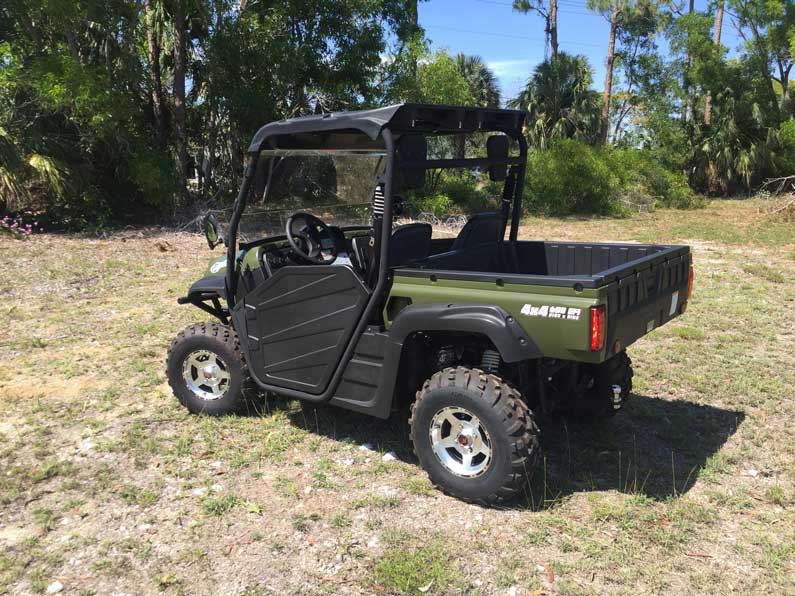

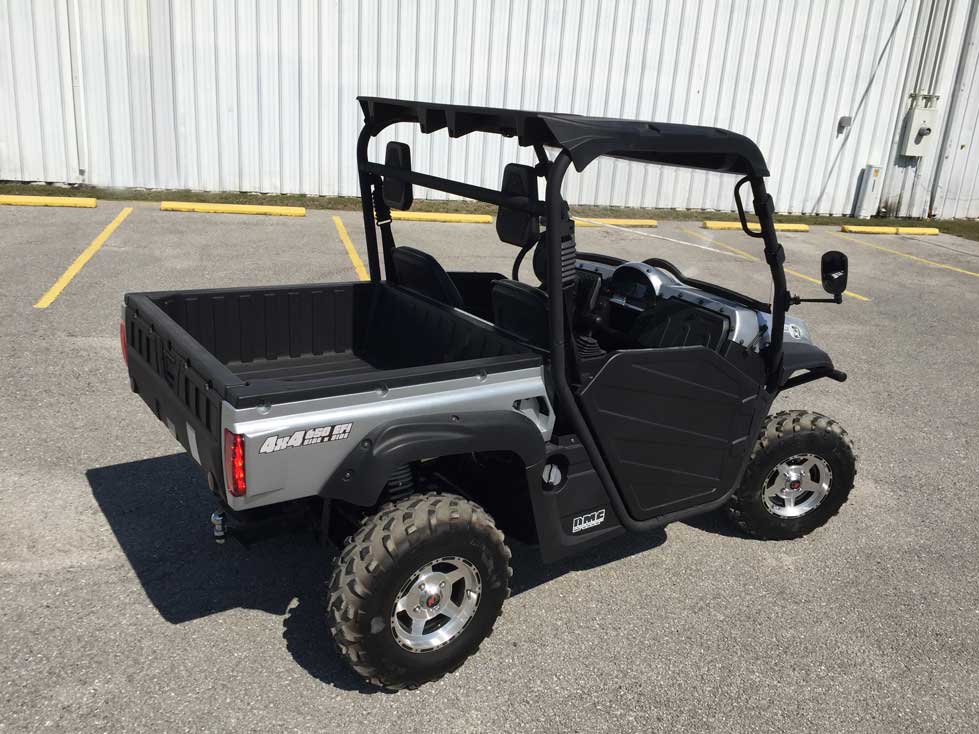

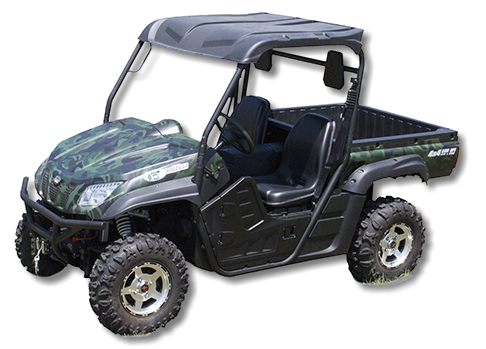

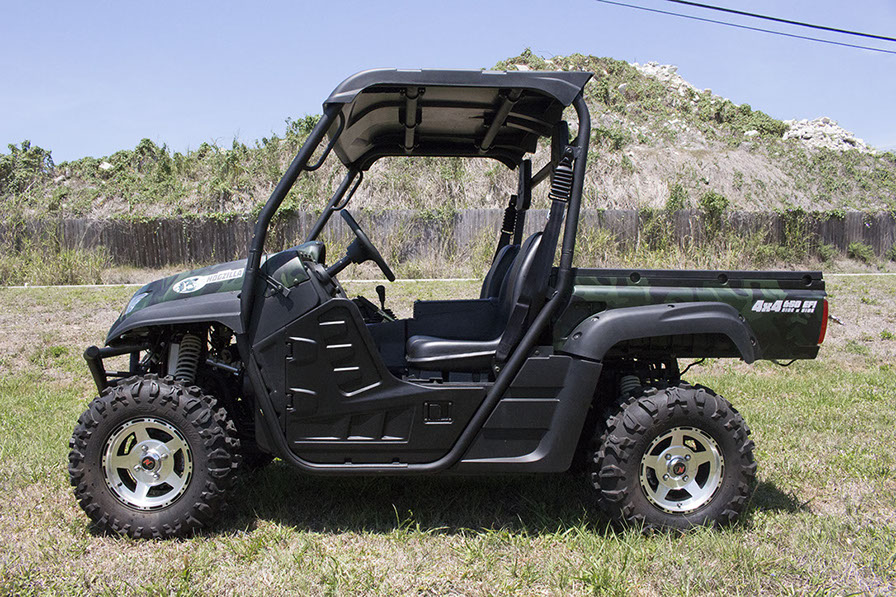

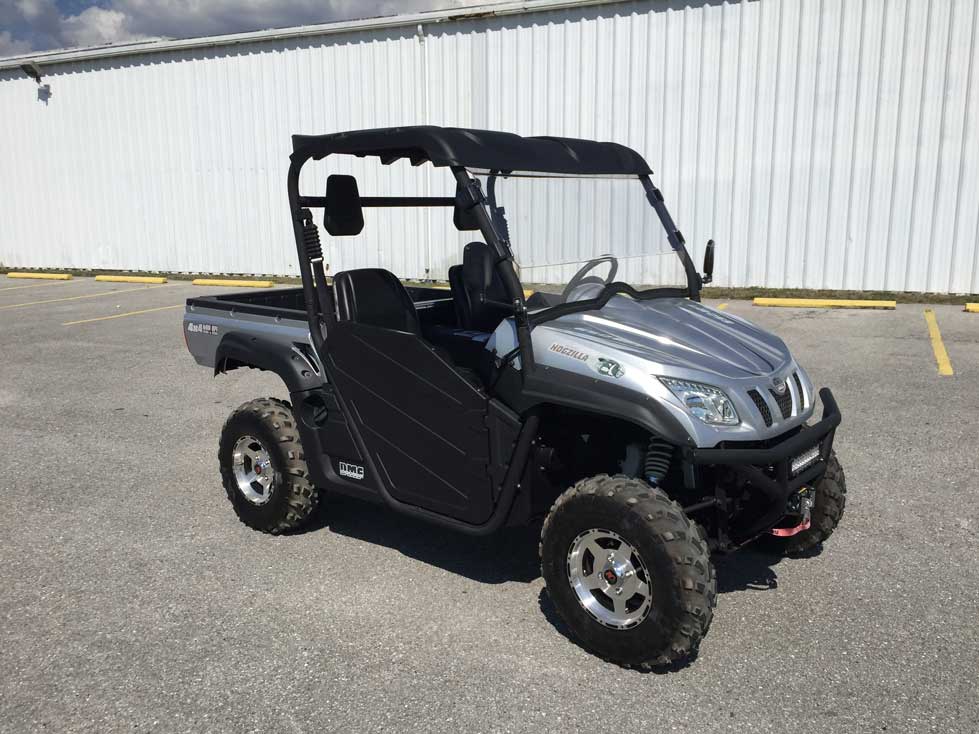

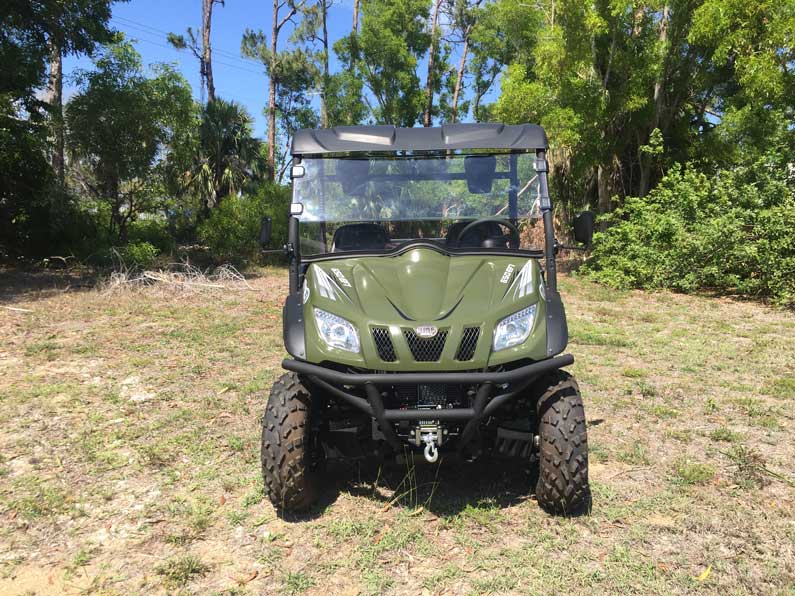

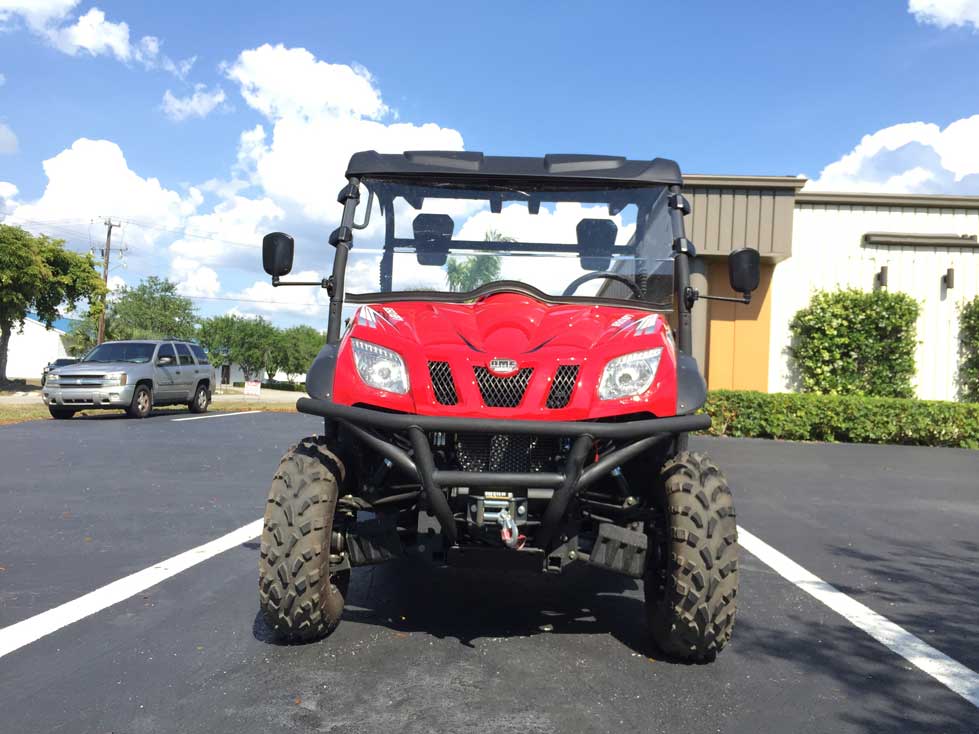

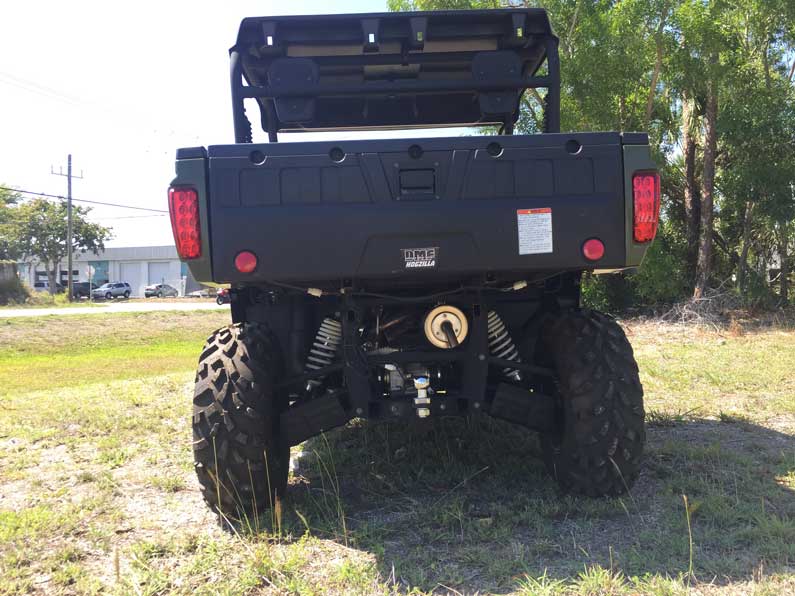

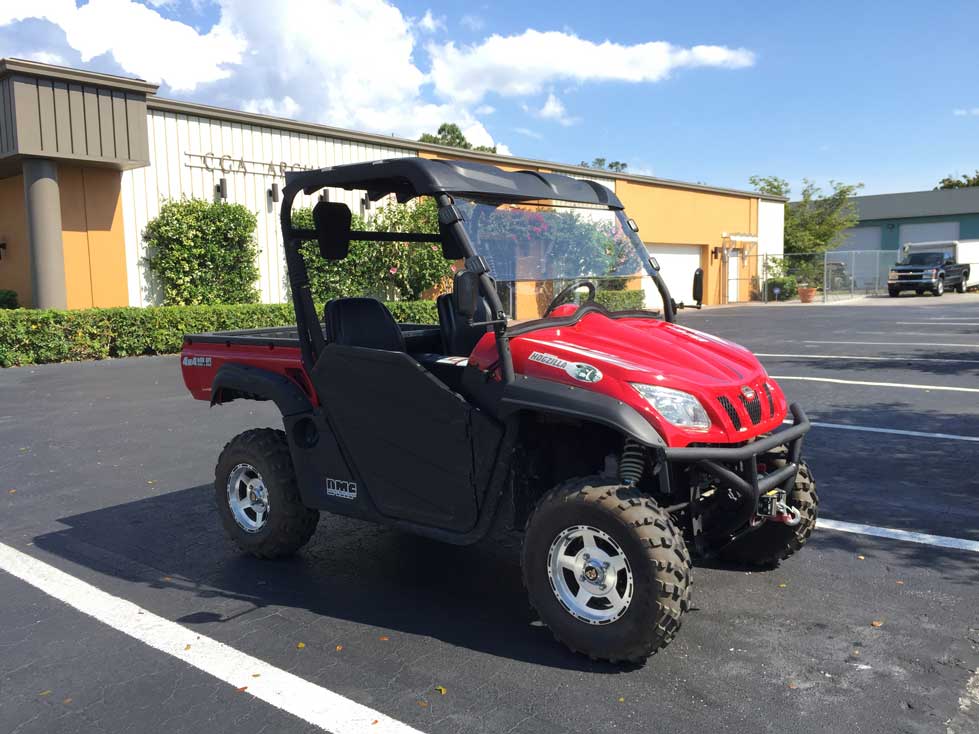

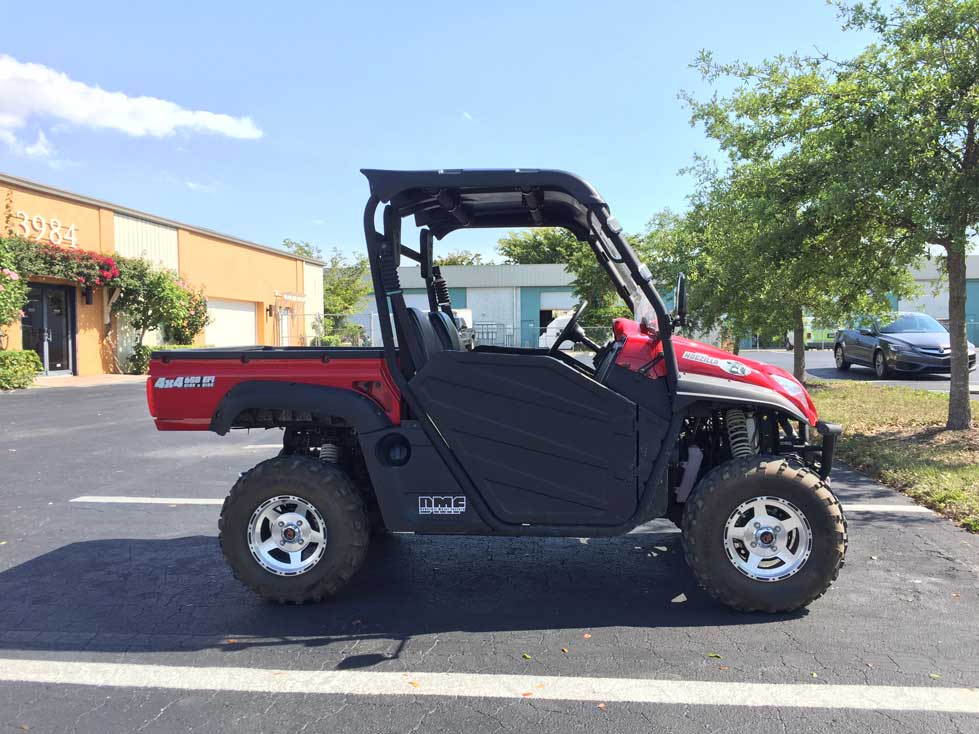

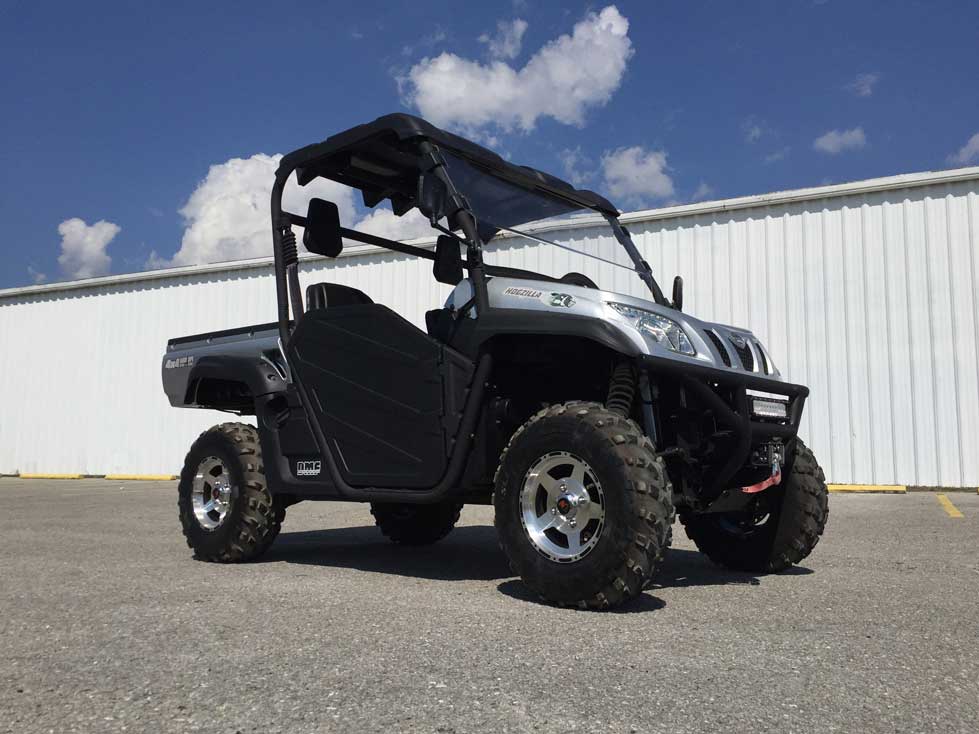

2019 HOGZILLA UTV Images:
<
>
24 - 24
Close
Engine
Type
Bore x Stroke
Compression
Carburetion
Ignition
Starting System
Transmission
Engine Braking
Drive Train
660cc liquid-/oil-cooled w/fan, SOHC four-stroke; 5-valve
100mm x 84mm
9.1:1
Electronic Fuel Injection
DC – CDI
Electric
V-Belt /H, L, N, R
All Wheel
Pushbutton 3-way locking differential, 2WD, 4WD, locked 4WD; Shaft.
Chassis
Suspension/Front
Suspension/Rear
Brakes/Front
Brakes/Rear
Tires/Front
Tires/Rear
Independent double wishbone, 7.3” travel w/5-way preload adjustment
Independent double wishbone, 7.3” travel w/5-way preload adjustment
Dual hydraulic disc, twin pistons
Hydraulic disc, self-adjust parking system, shaft mounted
AT25x8-12 NHS
AT25x10-12 NHS
Dimensions
L x W x H
Wheelbase
Turning Radius
Ground Clearance
Fuel Capacity
Dry Weight

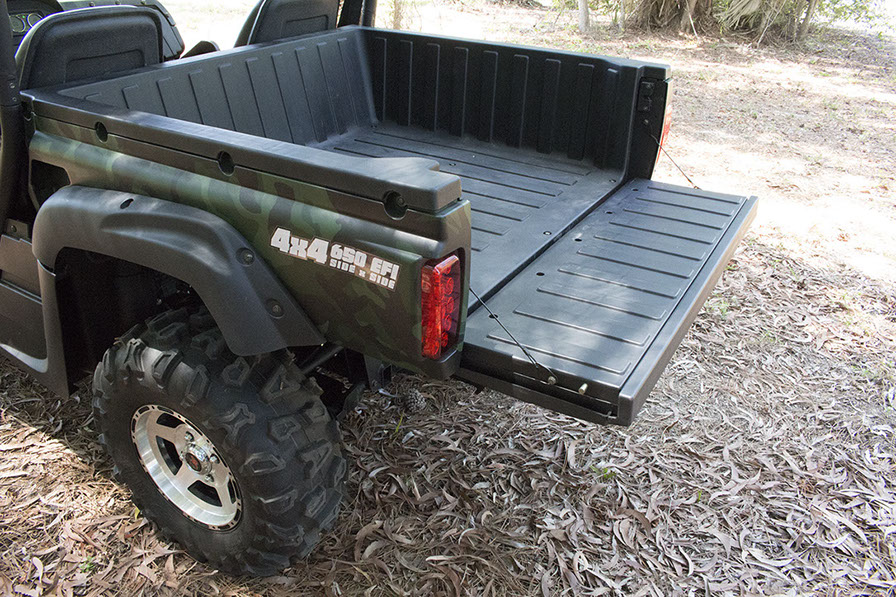

Bed Capacity
Towing Capacity
113.6” x 54.5” x 73.0”
75.2”
153.5”
12.1"
7.9 gal.
1049 lb.
400 lb.
1212 lb.
Other
DC Outlet

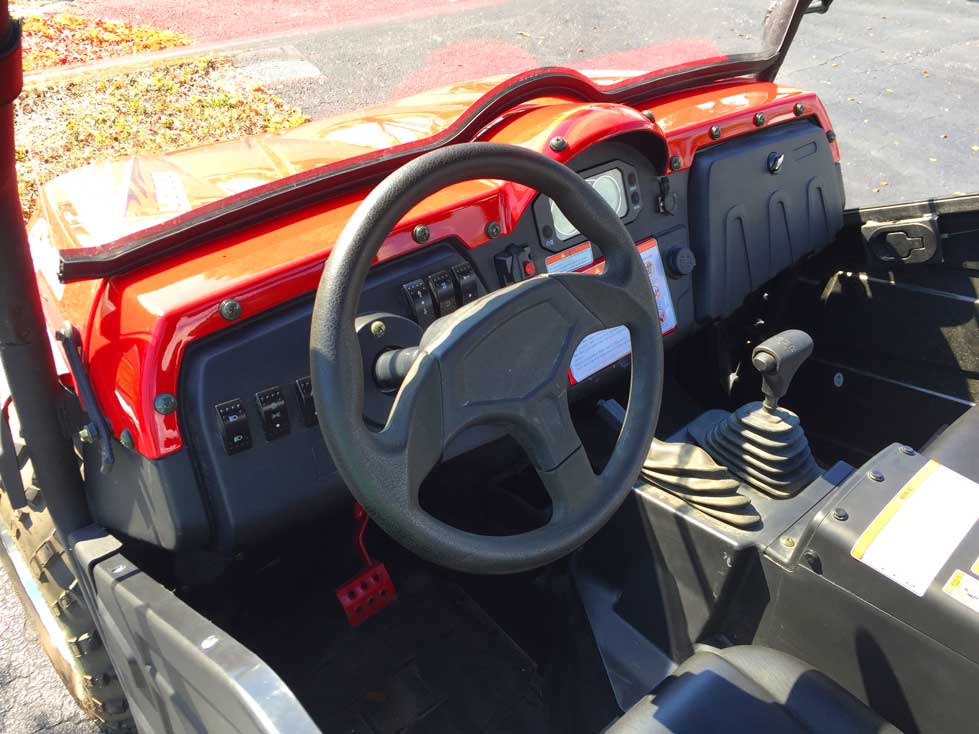

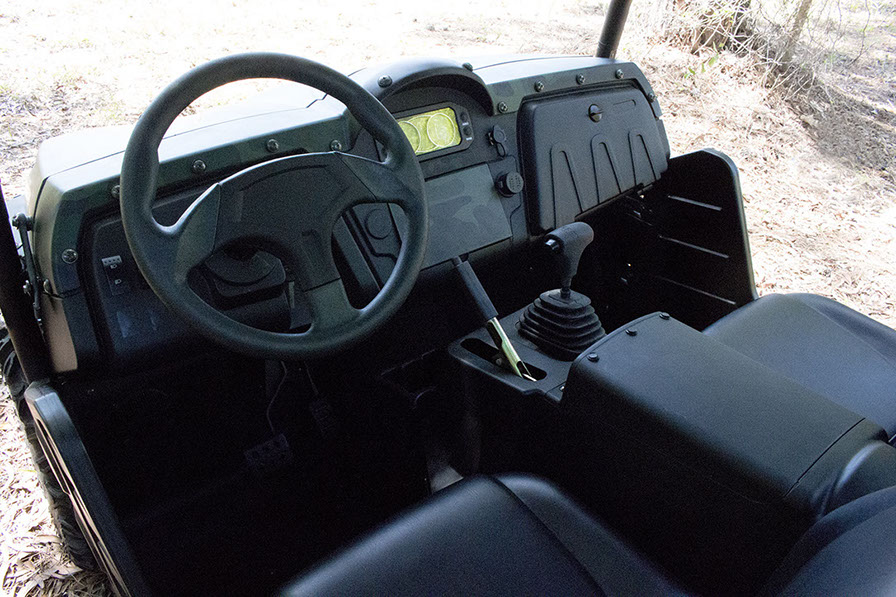

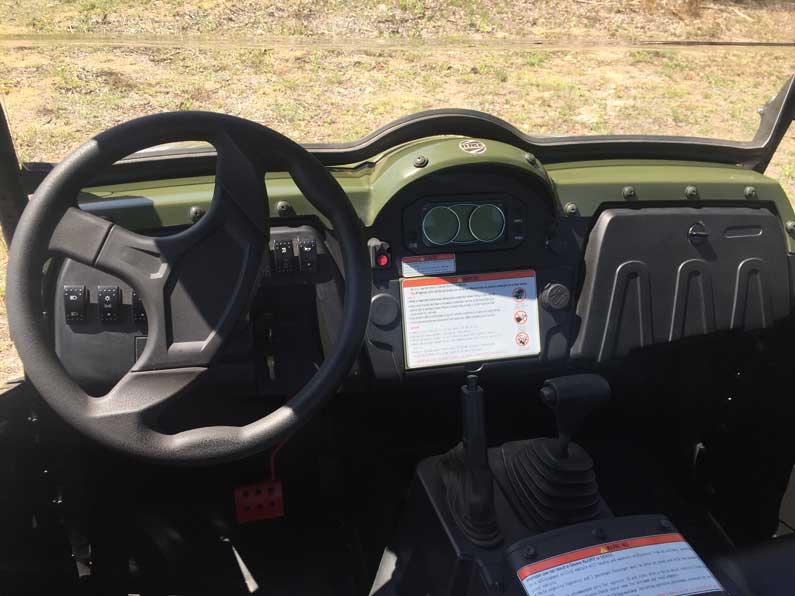

Instrumentation
Lighting

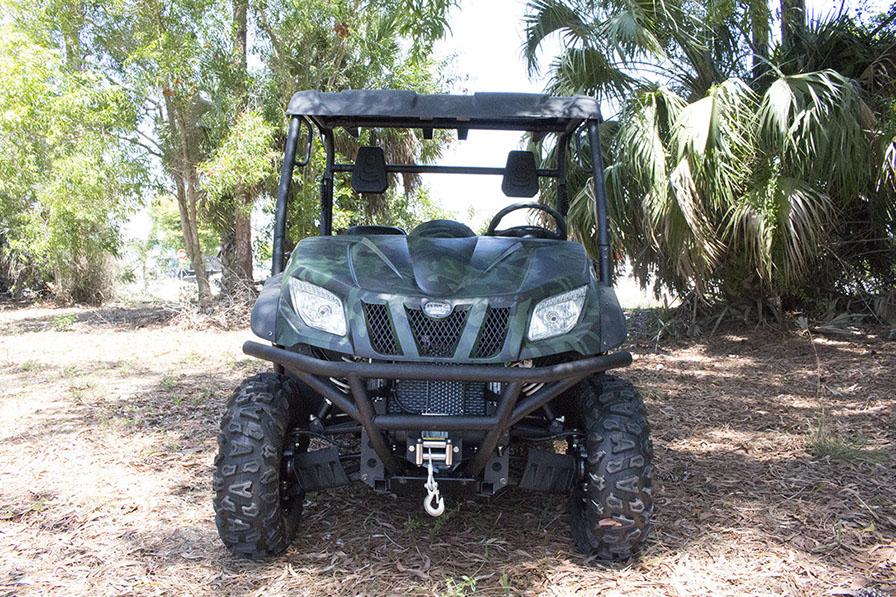

Front Winch
Warranty

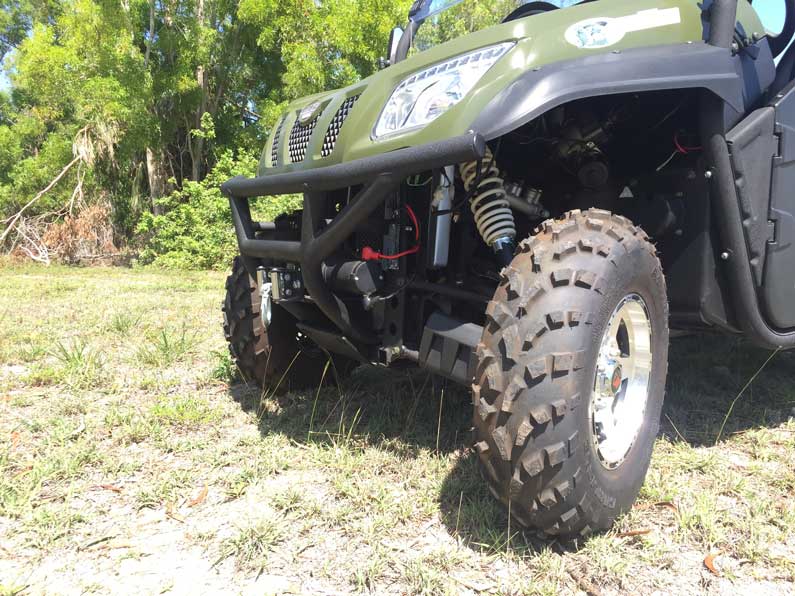

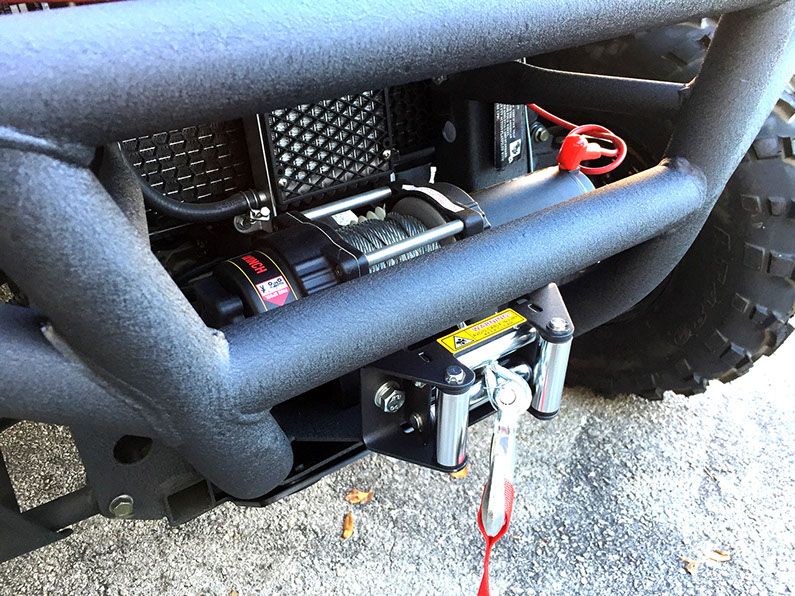

Tungsten T3000 Winch
Standard

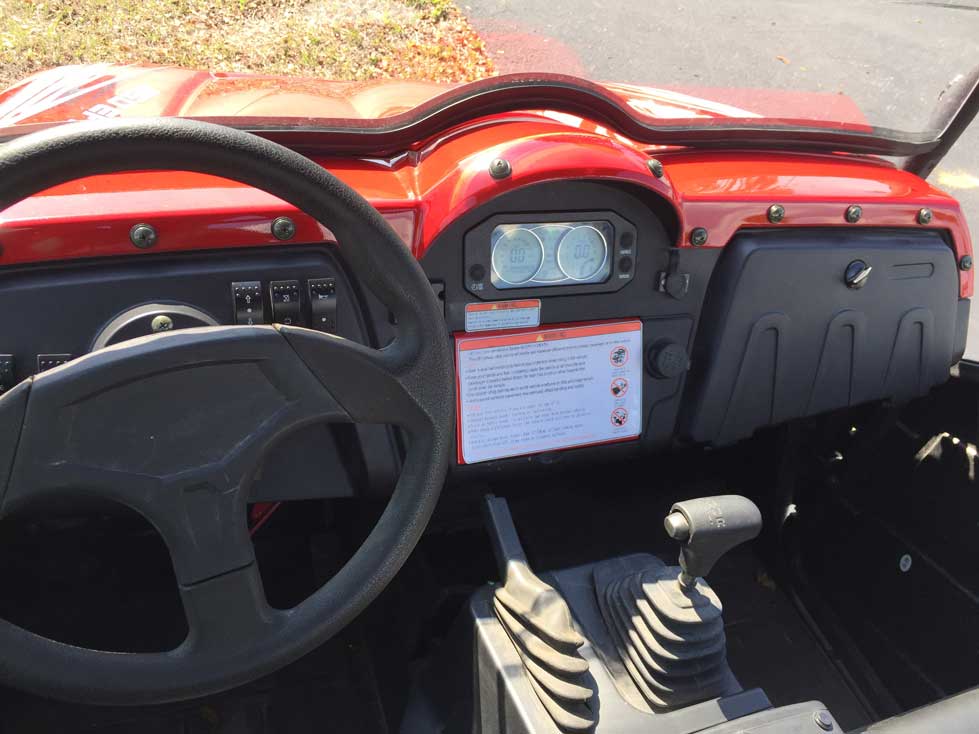

Digital LCD, multifunction display, fuel gauge, speedometer, odometer, dual trip, hour meter, clock, and gear position.
Dual 30W Krypton multi-reflector headlights & dual 21/5W brake light
Electronic operated with hand held control - Standard
6 Month (Limited Factory Warranty)
- Features a powerful, efficient 1.4 HP 12V DC permanent magnetic motor with free spooling clutch
- Completely waterproof, 3000 lbs rated capacity line pull for smooth and efficient operation
- 3-Stage planetary gear system, 49.2 feet of 3/16 inch wire rope with 4-way roller fairlead
Engine
Chassis
Dimensions
Other
Info on the production of the DMF Hogzilla UTV
DMF Hogzilla is producted by Hisun the biggest name in utility vehicles that most have never heard of. The company’s 7.1 million-square-foot factory near Chongqing, China, there is plenty of reason to believe that dealers in North America will be seeing more of these side-by-sides and ATVs for years to come.
There’s no doubt that Hisun knows how to make side-by-sides. From 2011-14, the company ranked No. 6 on the list of the largest UTV producers in North America. Its new location in China located 50 miles from the Chongqing Central Business District, has prepared the company for tremendous growth potential. Its previous factory in the central city was 2.1 million square feet. The spacious new location....
2019 UTV 4x4
650cc EFI Engine
Starting at:
