2019 DMF eCART UTV Specifications

Every eCART provides a wide range of standard equipment. Choose your golf cart color, seat color and lift kit. Plus choose even more options to customize your cart.

Rear cargo box
Extended longer roof
Front windshield
Folding rear seat
Rear trailer ball hitch
And more

Additional Included Equipment for the Standard Model Golf Cart

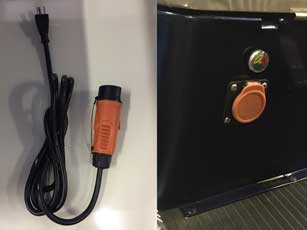

Stock equipment on standard body style golf carts: Your golf cart will come stock with a lift kit, 12" aluminum rim and wheel, spring leaf shocks, rear drum brakes, USB radio, standard roof, glass windshield, standard front seat, front brush guard, USB phone charger, 12v power port, side mirrors, dashboard storage area, 2 cup holders, smart charging port (cart charger) with on-board power inverter AC to DC, and charging cord.

Standard Model Specifications

Street legal standard equipment: Head lights, tail lights, horn, turn signals.

Purpose: Utility Task Vehicle (UTV) or golf cart

Passenger Capacity: 2 - 6 person depending on option.

Gross Weight: 1280 lbs (varies with options)

Max Speed: 19 MPH

Turning Radius: 11.5'

Lights and signal: Front and rear lights. Turning lights. Brake lights. Electrical horn

Chassis: Steel material and with powder coating surface

Rim size: 10" / 12"

Minimum Brake distance: 18’

Climbing Capacity: 30° (varies with wattage)

Power type: Electric motor

Distance per charge: 40-50 miles

Charge Time: 6-8 Hours

Charger: On-board input AC 110V, output DC 48V/25A

Motor: DC 48V in 3000w / 4000w / 5000w motor size

Battery: 6*8V/150AH, Trojan batteries

Controller: USA Curtis brand, 48V/4KW

eCART Battery Maintenance

Here is a GREAT video on our Trojan Batteries for maintenance or you can check out this PDF of the Trojan Battery User Guide.

Can my eCART be a Street Legal golf cart?

Our golf carts come with a variety of standard equipment the specifications list will show you standard model features. The eCART PRO, PRO PLUS, and GT Classic have the option to be able to be converted to a street legal golf cart with little change.

Information from Florida Highway Safety and Motor Vehicles.

Retrieved from https://www.flhsmv.gov/safety-center/consumer-education/low-speed-vehicles/

By purchasing our DOT approved golf cart windshield you can replace your eCART's existing windshield with the DOT one and you are on your way to making it a street legal golf cart. You must also have a manual windshield wiper installed on this windshield as well as a lighted license plate bracket installed on the back of the eCART. Reflectors must be in the front and rear of the eCART (red reflectors in the rear and orange/amber reflectors in the front).

We sell a DOT approved windshield for $299.99 Installation instructions here.

Approved by the DMV as a "Converted Golf Cart"

Prior to titling and registering a converted golf cart, the vehicle must be inspected and assigned a VIN at a Motorist Services Regional Office.

Trailer the converted golf cart to a Motorist Services Regional Office and present the following documents and fees for an inspection, VIN assignment, title and registration:

Manufacturer’s Certificate of Origin or a bill of sale for the golf cart form HSMV 84490 (Statement of Builder) completed by customer and compliance examiner/inspector
Form HSMV 86064 (Affidavit for Golf Cart Modified to a Low Speed Vehicle)
Original bill(s)s of sale or receipt(s) for all parts used to convert the golf cart;
Certified weight slip for the converted golf cart.
Form HSMSV 82040 (Application for Title)
Proof of Florida insurance (minimum $10,000 PDL and $10,000 PIP)
Sales tax or sales tax exemption information for all parts
Identification - driver license, ID card or passport
Applicable fees, flhsmv.gov/fees

Inspection fee
Initial registration fee, if applicable
Title fee
Registration fee (varies by weight of vehicle)
Plate fee
